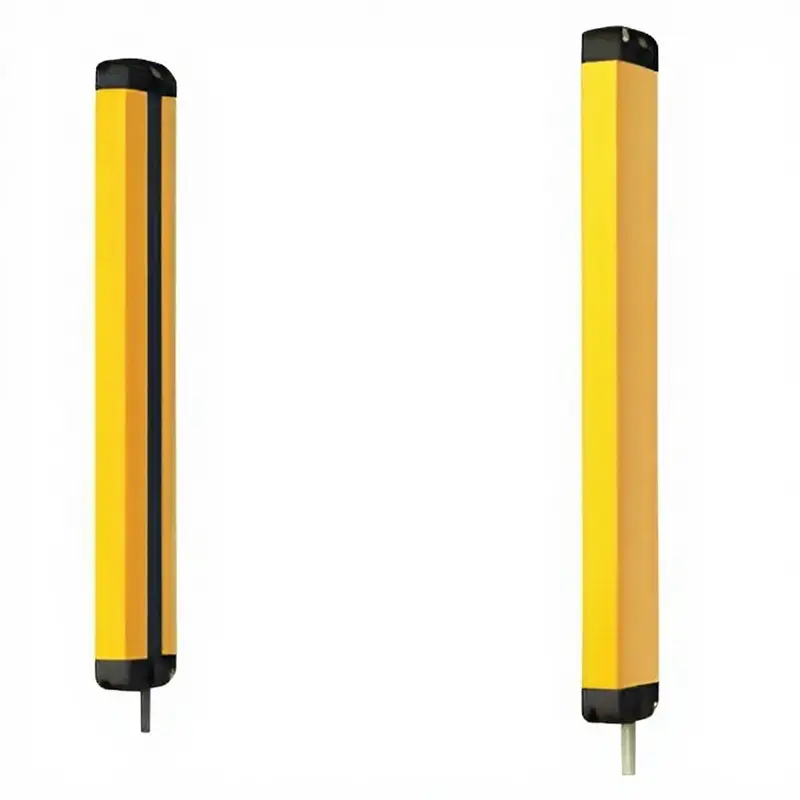

Area Light Curtain Sensors | DASS Safety & Measuring Area Sensors
DASS area light curtain sensors form continuous optical detection area via multi-beam through-beam structure, divided into safety protection light curtains and measuring area sensors. High-density beam layout achieves full coverage detection without blind spots, used for equipment safety protection, object height measurement, width sorting and access safety isolation in automated production lines.
Main Sub-series Breakdown
- DS-A General Series: Standard thickness light curtain, cost-effective for most safety and measurement scenes
- DS-AL Ultra-Thin Wide Emission Series: Slim narrow housing, save installation space for compact equipment frames
Application Scenarios
Mechanical press safety isolation, automated warehouse access protection, logistics parcel height & width sorting, packaging machine material missing detection, robotic workstation safety guard, elevator safety zone detection.
Area Sensors Core Advantages
Multi-beam customizable height, beam pitch adjustable for tiny object detection
Strong anti-interference, anti-sunlight & workshop light disturbance
Quick installation bracket, modular splicing design for different height demands
Short circuit & reverse wiring protection, stable long-time continuous operation
Safety light curtain with safety relay output, meet industrial machine safety standards
Measuring area sensor support real-time object size data output for sorting system
FAQs
IP65 dustproof & waterproof housing prevents dust and water mist from affecting optical performance.
All DASS safety area sensors pass CE safety certification, meet global machinery safety standards.
Main Specifications
- Detection Height: Customizable from 100mm to 2000mm
- Beam Pitch: 5mm / 10mm / 20mm optional
- Power Supply: DC 12~24V
- Protection Grade: IP65
- Output Type: NPN/PNP / safety relay output
Ultimate Area Sensor Buying Guide
- Select small 5mm beam pitch if detecting tiny foreign objects
- Safety relay output light curtains for stamping, cutting dangerous machinery
- Custom detection height and cable length according to machine frame size
- Use measuring area sensors for automatic sorting & dimension inspection
